System: ICCP AFT&FWD AND MGPS SYSTEMS
Manufacturer: CATHELCO LTD
Work Undertaken: ICCP AFT&FWD AND MGPS SYSTEMS RENEWALS AND GENERAL CHECKS&REPAIR OPRT.
. * VESSEL AT DOCKING POSITION AT SEFİNE SHIPYARD DATE OF 06.10.2024
VESSEL AFT SIDE CONTROL PANEL INSIDE CHECKED. ALL FUSES ARE CHECKED.
NO BLOWN FUSE.NO SHORT CIRCUIT ANODES OR REF CELLS PANEL INSIDE CHECKINGS ARE OK.
PANELS NAME PLATE DETAILS:440VAC 3 PH 60HZ INPUT, 24V DC OUTPUT :200/200 AMPS . (AFT&FWD)
HULL EQUIPMENT 8 OFF 50 AMPS ELLIPTICAL ANODES & 4 OFF ZINC REF.CELL
ALL ICCP ANODES AND REF CELLS REPLACED WITH NEW ONES.
ALL SUPERVISING CABLING & ALL CONTROLS STEP BY STEP BY US.

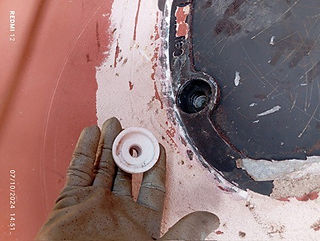

8 POINTS ANODES&REF CELL RENEWED BY ANODES AROUND DI-ELECTRIC EPOXY AREA ARE COMPLETED MGPS SYSTEM HAS 6 ANODES. 3 OFF CU(COPPER) 3 OFF AL(ALUMINIUM).MGPS SPARES WAS NOT ORGINIAL ITEMS. ALL ANODES REPLACED WITH NEW ONES. MGPS POWER MODUL REPLACED WITH NEW ONES. SYSTEMS CHECKED AND AFT ICCP SYSTEM WORKING WELL.
PLS LOOK MGPS MANUEL CURRENT SETTINGS PAGE! IN OPR. OR NOT IN OPR. MODE !
SHAFT EARTHING DEVICE IS CHECKED SLIPRING&BRUSHES&HOLDERS MUST BE CLEAN AND
CHECKS MUST BE WEEKLY ! RUDDER BONDING CABLE CHECKED.
• VESSEL AT SEA POSITION AFT&FWD CONTROL PANELS ARE TESTED / COMISSIONNED !
• ICCP SYSTEM CONTROL PANEL SWITCH OFF ! SYSTEM READY FOR WORKING AT AUTO
MODE AT SAILING. PLS. LOOK FOR OPERATION FOLLOWING RECOMMENDATIONS.
• ALL CLIENT PHOTOS AS ATTACHED. LOG SHEET SAMPLE EXCELL PAGE AS ATTACHED
• TIME SHEETS AS ATTACHED ! MGPS SYSTEM MUST BE SWITCH ON ALL TIME!
